The BoxoUSA Elite Aviation Master Tool Set is the most comprehensive aviation tool set in the Boxo Blueprint, designed for seasoned aviation professionals who demand precision, durability, and efficiency. Developed in collaboration with aviation schools, manufacturers, and certified service centers, this 288-piece set provides an extensive range of SAE 12-point tools tailored to the rigorous standards of aircraft maintenance.

This set expands upon the Starter and Advanced Aviation Master Tool Sets, offering specialized wrenches, impact-rated tools, precision drivers, and aviation-specific instruments to ensure technicians have the right tool for every job. Each tool is securely stored in precision-cut EVA foam, providing superior organization, protection, and quick access in demanding work environments.

Backed by BoxoUSA’s Hassle-Free Lifetime Warranty, this set guarantees long-term reliability and professional-grade performance.

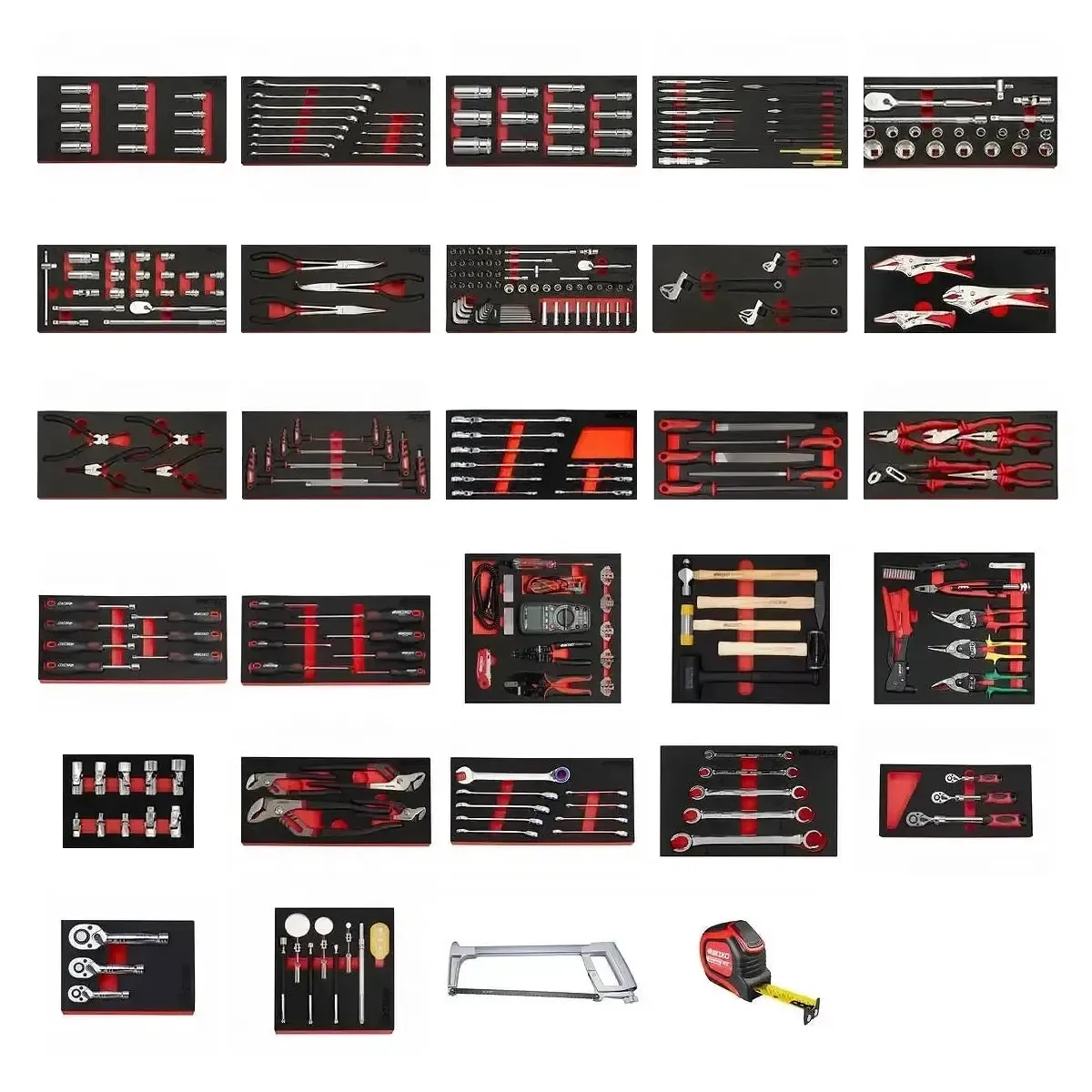

COMPONENTS

BX231-R2: 65-Piece 1/4” Drive SAE 12-Point Socket Set
- 90-tooth ratchet
- 12-Point 5/32" to 9/16" standard sockets
- 12-Point 3/16" to 1/2" deep sockets
- Extensions, spinner handle, sliding t-handle and universal joint
- 13-piece ball hex key set
- 24-piece hex, slotted, phillips, pozi and torx bit socket set
BX233-R2: 21-Piece 3/8” Drive SAE 12-Point Socket Set
- 90 Tooth Ratchet.
- 12 Point 1/4" to 15/16" Standard Sockets.
- 3" (75mm), 5" (125mm) & 10" (250mm) Extensions.
- 5/8" (16mm) & 13/16" (21mm) Spark Plug Sockets.
- Sliding T-Bar & Universal Joint.
BX237-R2: 21-Piece 1/2” Drive SAE 12-Point Socket Set
- 90 Tooth Ratchet.
- 12 Point 5/16" to 1-1/4" Standard Sockets.
- 5" (125mm) & 10" (250mm) Extensions.
- Sliding T-Bar & Universal Joint.
BX243-R2: 12-Piece 3/8” Drive SAE Deep 12-Point Socket Set
- 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16"
BX245-R2: 14-Piece 1/2” Drive SAE Deep 12-Point Socket Set
- 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1", 1-1/16", 1-3/16", 1-1/4"
BX006S-R2: 13-Piece SAE Combination Wrench Set
- 1/4", 5/16", 11/32", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16"
BX719-R2: 7-Piece Stubby SAE Reversible Ratcheting Combo Wrench Set
- 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", and 3/4"
BX022S-R2: 8-Piece SAE Flex Head Ratcheting Wrench Set
- 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4" Open End & Ratcheting Box End Wrenches
BX536-R2: 9-Piece 100T SAE Ratcheting Combination Wrench Set
- 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" & 3/4"
BX517-R2: 5-Piece SAE 12-Point Flare Nut Wrench Set
- 1/4" x 5/16", 3/8" x 7/16", 1/2" x 9/16". 5/8" x 11/16" & 3/4" x 13/16"
BX535-R2: 9-Piece Flex Head 100T SAE Ratcheting Combination Wrench Set
- 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16" & 3/4" Chrome Wrenches
BX248B-R2: 19-Piece Screwdriver, Plier, and Utility Tool Set
- 12-½” Claw hammer
- 26-foot tape measure
- 12” Steel ruler with conversion table
- Dual-blade heavy-duty utility knife
- 8-¼” Heavy-duty cut and strip wire pliers
- 7” Heavy-duty diagonal side cutter
- 10” Slip joint water pump plier
- 7” Combination plier
- 8” Long needle nose plier
- 8” Bent needle nose plier
- 10” Chrome Paw adjustable wrench
- Slotted Screwdrivers: 4 x 100mm, 6 x 100mm, 8 x 150mm, 6 x 38mm
- Phillips Screwdrivers: PH1 x 100mm, PH2 x 100mm, PH3 x 150mm, PH2 x 38mm
BX095-R: 8-Piece Slotted, Phillips & Pozi Drive Screwdriver Set
- 3x75 & 4x100 Slotted Drivers.
- PH0x75 & PH2x100 Phillips Drivers.
- PZ0x75, PZ1x100, PZ2x100 & PZ3x150 Pozi Drive Drivers.
BX043-R: 6-Piece Pliers & Adjustable Wrench Set
- HD Diagonal Side Cutter, Long Needle Nose, Bent Needle Nose, Straight / Pipe / Cutter Jaw Combination & Slip Joint Water Pump Pliers with Ergonomic TPR Handles.
- 10" Adjustable Wrench with Ergonomic Handle is also included.
BX522-R: 4-Piece Groove Joint Water Pump Pliers
- 6", 8", 10" & 12" Heavy Duty Pliers
BX011-R: 3-Piece Adjustable Wrench Set
- 6”, 8”, and 10”
BX028-R: 3-Piece 11” Long Handled Needle Nose Plier Set
- 11" Extra Long Handle Straight, 45° & 90° Needle Nose Pliers
BX010-R: 3-Piece Locking Plier Set
- 6 Long nose locking jaw plier
- 9" Long nose locking jaw plier
- 10" Long curved locking jaw plier
BX502-R: 5-Piece Hammer Set
- (1) 500g Engineers hammer with hickory handle
- (1) 35mm Interchangeable double soft faced hammer with hickory handle
- (1) 55mm Dead blow hammer
- (1) 2.5 Lb. Club hammer with hickory handle
- (1) 16 oz. Ball peen hammer with hickory handle
BX916-R: 17-Piece Punch & Chisel Set
- Pin Punches: #2, #3, #6 x 6" (150 mm) and #8 x 7.75" (200 mm)
- Taper Punches: #3 x 5.50" (140 mm), #4 & #5 x 6" (150 mm), #8 x 6.50" (165 mm)
- Cold Chisels: #10, #12, #16, #18 x 6" (150 mm) and #23 x 7.75" (200 mm)
- Cape Chisel: #5 x 5.30" (135 mm)
- Brass Punches: 1/4" and 5/16", knurled handles, chamfered heads
- Auto Center Punch: Spring-loaded with knurled handle
BX027-R: 5-Piece Steel File Set
- Flat, half-round, triangle, and square files
BX533-R: 7-Piece Pickup & Mirror Tool Set with LED Light
- Telescoping magnetic pick-up tools and inspection mirrors
HS-300H: 12” High Tension Hacksaw
MT25F27SR: 25-Foot Tape Measure

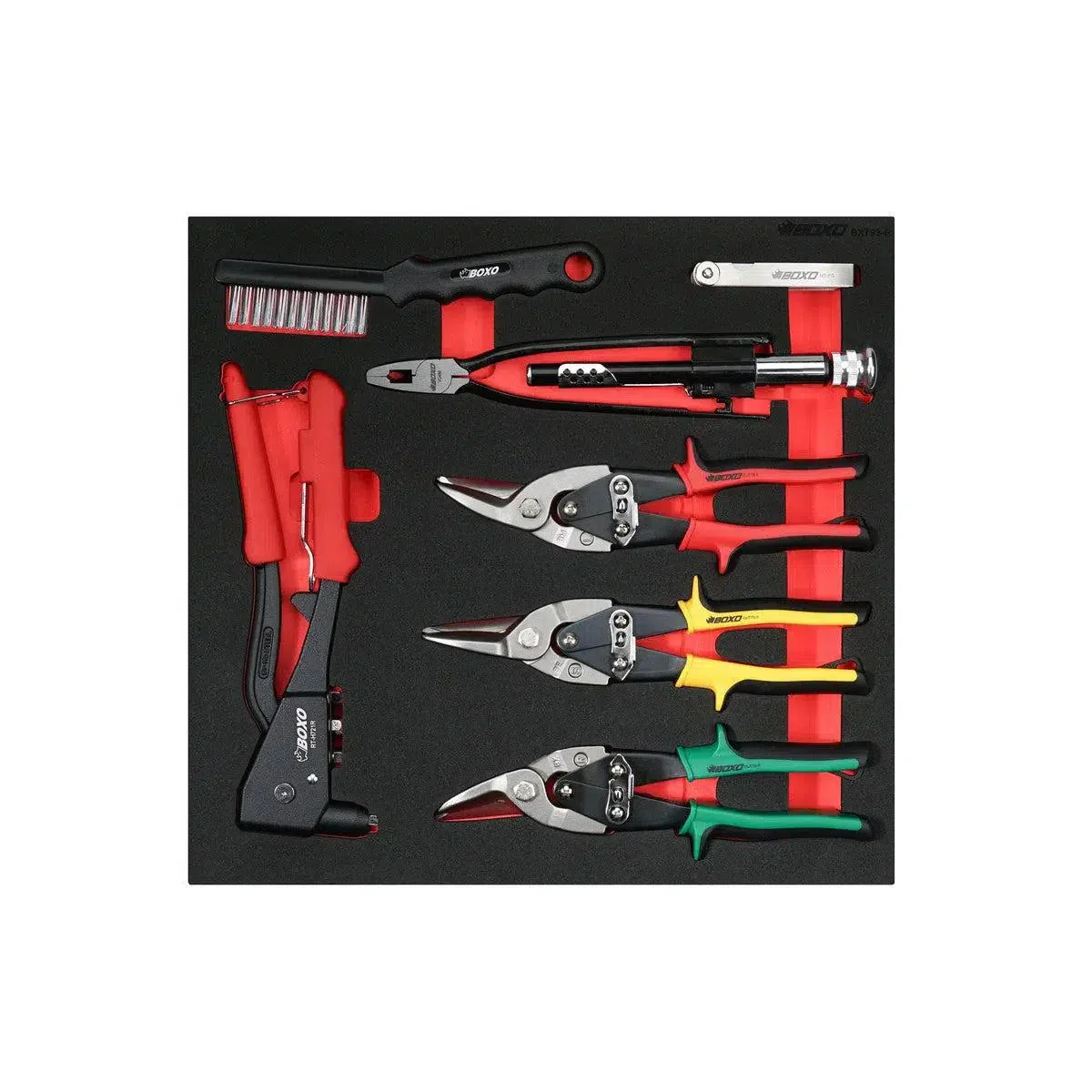

BX793-R: 7-Piece Aviation Tool Set
- Durable Pop Rivet Gun - RT-H721R
- 10” Left cutting snips
- 10” Right cutting snips
- 10” Straight cutting snips
- 9” Reversible wire twister plier; left and right twists
- 32-Piece feeler gauge measures 0.4mm to 1mm
- Steel brush
BX790-R: 14-Piece Electrical Tool Set
- Digital multimeter (SKU: IDM-003) and cables
- 2-piece multimeter cables
- Circuit tester
- Dual-blade heavy-duty utility knife
- Heavy-duty cut & wire pliers
- 2-Piece utility knife replacement blades (straight and angled blades)
- 8-⅝” Open Barrel & D-Sub. V3.5 crimping tool (AWG 14 / 22 / 8-6 & mm 2.5 / 0.5 / 8-10)
- Insulated Terminal (AWG 22-18 / 16-14 / 12-10 & mm 0.5-1 / 1.5-2.5 / 4-6)
- Non-Insulated Terminal (AWG 20-18 / 16-14 / 12-10 / 8 & mm 1.5 / 2.5 / 6 / 10)
- Open Barrel Terminal (AWG 20-18 / 16-14 / 12-10 & mm 0.5-1 / 1.5-2.5 / 4-6)
- Insulated Cord-End Terminal (AWG 22 / 20 / 18 / 16 / 14 / 12 & mm 0.5 / 0.75 / 1 / 1.5 / 2.5 / 4)
- Insulated Huge Cord-End Terminal (AWG 10 / 8 / 6 & mm 6 / 10 / 16)

FEATURES

Complete SAE 12-Point Socket Range – Covers ¼”, ⅜”, and ½” drive sockets, including deep, standard, and impact-rated options, ensuring precise engagement with fasteners to prevent slippage and reduce the risk of dropped tools contributing to Foreign Object Debris (FOD).
Expanded Wrench Selection – Includes flex head, ratcheting, stubby, and flare nut wrenches, designed for tight spaces and fast engagement, minimizing the need for repositioning and lowering the chance of misplaced tools that could become FOD hazards.
Specialty Tools for Aviation Maintenance – Features aviation-specific tools, precision drivers, hammers, and electrical tools that meet strict industry requirements, helping technicians maintain clean and controlled workspaces to reduce FOD risks.
Professional Organization – EVA foam storage inserts keep tools secure, visible, and easily accounted for, ensuring quick identification of missing tools and preventing FOD-related incidents in critical work environments.
Laser-Etched Labels: Ensures quick tool identification and prevents misplaced tools.
CNC Precision Cut: Guarantees a snug fit to keep tools secure and in place.
Two-Tone High-Visibility Design: Makes it easy to spot missing tools at a glance.
Durable & Easy to Clean: Resistant to grease, wear, and damage, ensuring long-term performance.
